Tubular Soil Moisture Profiler: Multi-Layer RS485 Temperature & Humidity Integrated Sensor

Product Overview

Tubular soil moisture profiler for real-time soil temperature and humidity measurement. Designed for smart agriculture, precision irrigation, and environmental monitoring with multi-layer customizable options.

Product Specifications

• Product Name: Tubular Soil Moisture Profiler / Soil Temperature and Humidity Sensor

• Variant: 1-Layer Soil Temperature & Humidity RS485 (Options available from 1 to 8 layers)

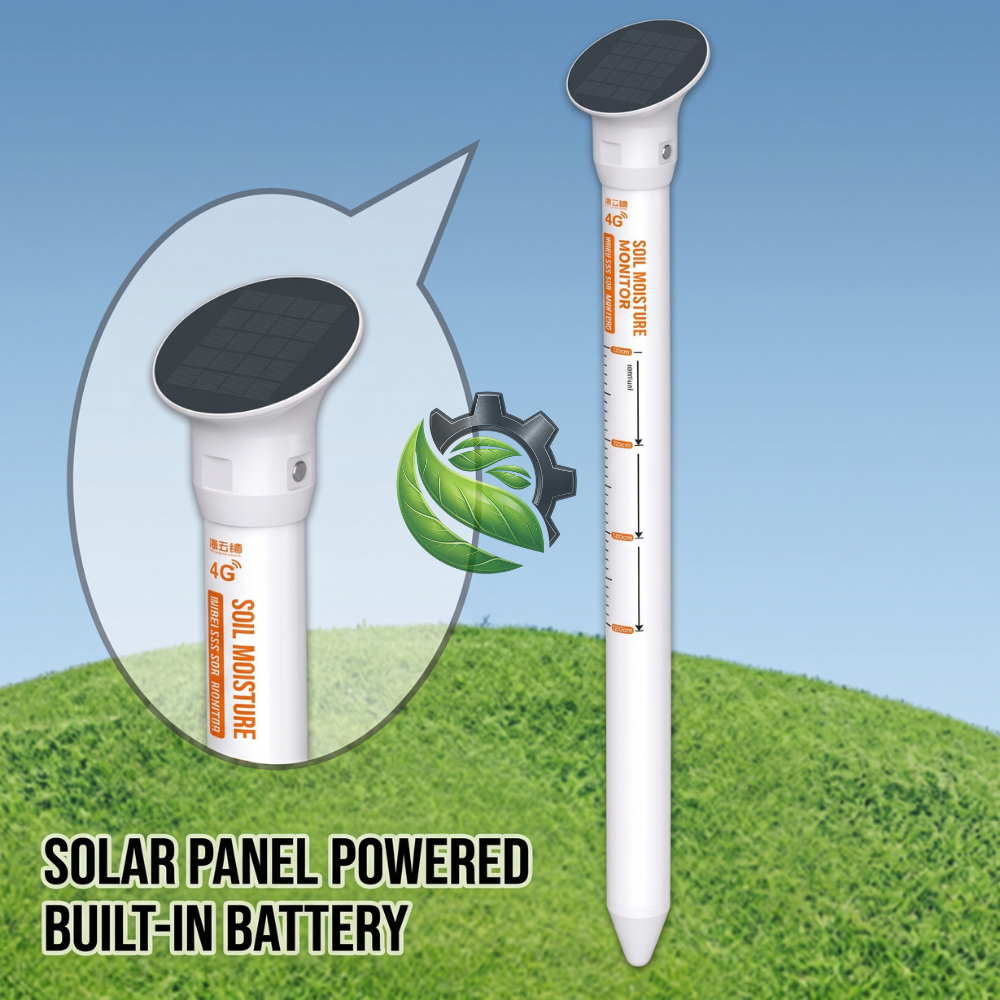

• Communication Output: RS485 (Supports 4G wireless configuration options)

• Protection Level: High Waterproof Grade

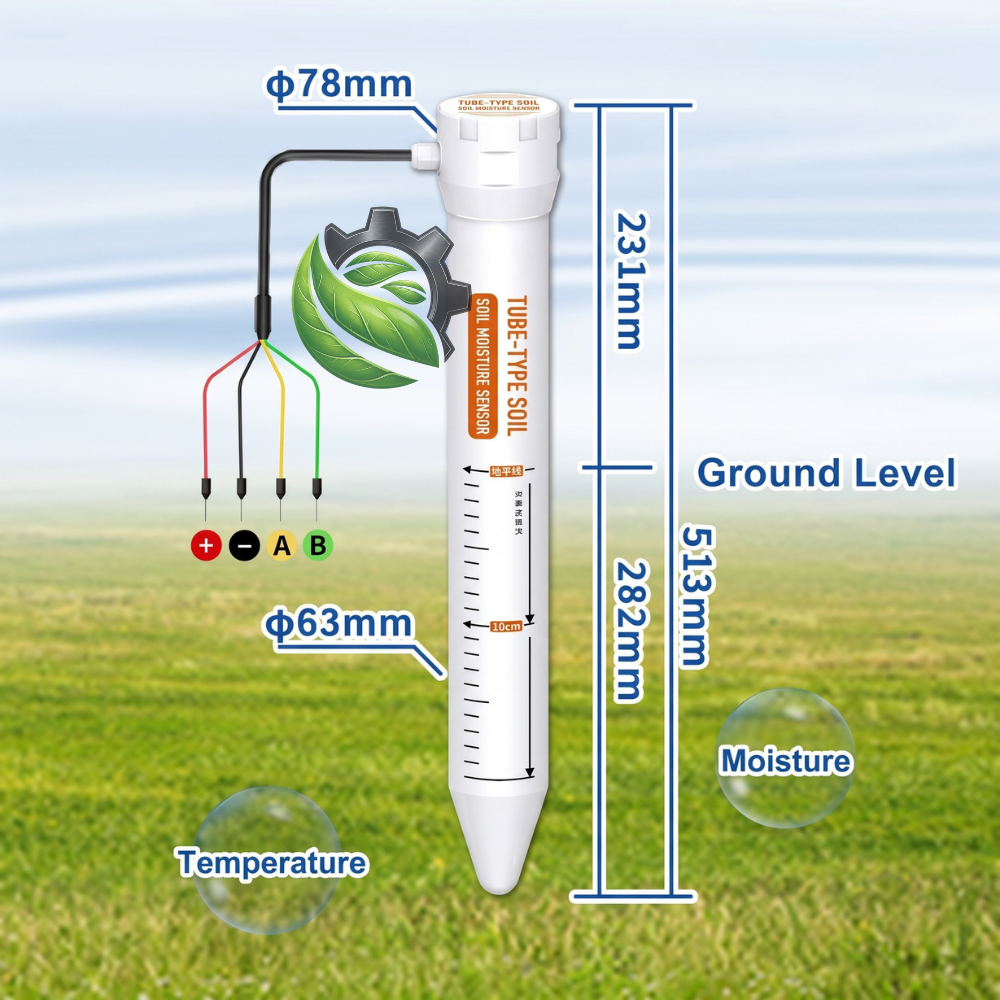

Dimensions:

• Top Cap Diameter: ∅78 mm

• Tube Body Diameter: ∅63 mm

• Above-Ground Height: 231 mm

• Underground Probe Length: 282 mm

• Total Height: 513 mm
