High-Precision S-Type Tension and Pressure Weighing Sensor (Load Cell)

Product Overview

High-precision S-type tension and compression weighing sensor / load cell designed for batching plants and industrial weight/force measurement applications.

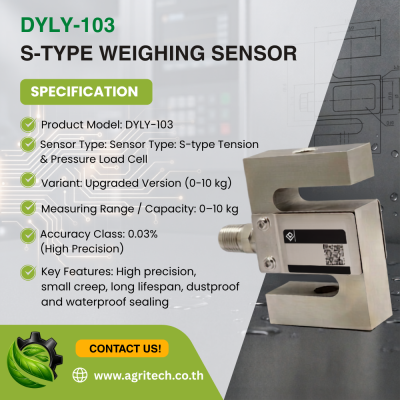

Product Specifications

• Model: DYLY-103

• Variant: Upgraded Version (0-10 kg)

• Sensor Type: S-type Tension & Pressure Load Cell

• Measuring Range / Capacity: 0–10 kg

• Accuracy Class: 0.03% (High Precision)

• Sensitivity / Output: 2.0 mV/V

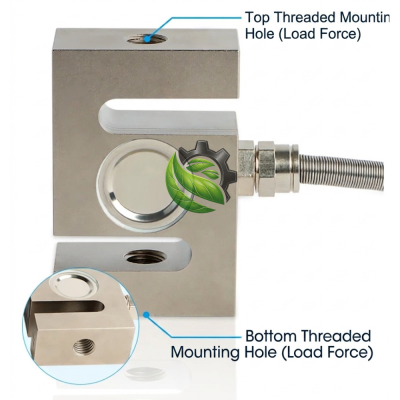

• Thread Size: M8 x 1.25

• Key Performance Features: Low creep, high precision, and long lifespan


Dimensions

• Height: 63.5 mm

• Width: 50.8 mm

• Thickness: 12.7 mm
